Productdetails:
|
productnaam: | Oliebuizenstelsel | Lengte: | R1 R2 R3 |
---|---|---|---|
Rang: | J55 | de industrie: | Olieveldboring |
Markeren: | OCTG-Boorpijp J55,De Pijp API 5CT van het olieomhulsel,De Pijpomhulsel van de olieveldboor |

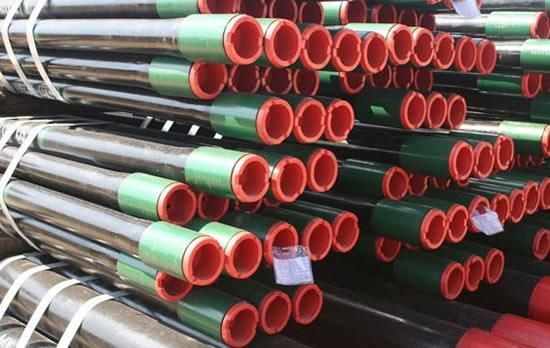

De boorpijp J55 API 5CT 1,050 van het Oliebuizenstelsel“ aan 4 1/2“ Nieuw -Olieveldmateriaal
API 5CT Oliebuizenstelsel
Rang: H40, J55, K55, L80, L80-13Cr, L80-9Cr, n80-1, N80Q, P110
O.D: 1.050“ - 4 1/2“
Lengte: R1, R2, R3
Verbinding: De EU, NU, IJ, Premieverbinding (NIEUWE , ph-6)
Etiketten | OD | Nominale Voeringsmassa's | GEWICHT | Het type van eind eindigt | |||||||||||
1 | 2 | Niet-verstoorde T&C | Ext.Upset T&C | Interg. Gezamenlijk | |||||||||||
NU T&C |
De EU T&C |
IJ |
D mm |
Kg/m | Kg/m | Kg/m |
t mm |
H40 | J55 |
L80 R95 |
N80 Type 1, Q |
C90 | T95 | P110 | |
1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 |
1,660 1,660 1,660 |
2.09 2.30 3.03 |
- 2.40 3.07 |
2.10 2.33 - |
42.16 42.16 42.16 |
- 3.42 4.51 |
- 3.57 4.57 |
3.13 3.47 - |
3.18 3.56 4.85 |
Pi PNUI Pu |
Pi PNUI Pu |
- PNUI Pu |
- PNUI Pu |
- PNUI Pu |
- PNUI Pu |
- - Pu |
1,900 1,900 1,900 1,900 1,900 |
2.40 2.75 3.65 4.42 5.15 |
- 2.90 3.73 - - |
2.40 2.76 - - - |
48.26 48.26 48.26 48.26 48.26 |
- 4.09 5.43 6.58 7.66 |
- 4.32 5.55 - - |
3.57 4.11 - - - |
3.18 3.68 5.08 6.35 7.62 |
PI PNUI PU - - |
PI PNUI PU - - |
- PNUI Pu P P |
- PNUI PU - - |
- PNUI Pu P P |
- PNUI Pu P P |
- - Pu - - |
2,063 2,063 |
3.24 4.50 |
- - |
3.25 - |
52.40 52.40 |
- - |
- - |
4.84 - |
3.96 5.72 |
Pi P |
Pi P |
Pi P |
Pi P |
Pi P |
Pi P |
- P |
2-3/8 2-3/8 2-3/8 2-3/8 2-3/8 |
4.00 4.60 5.80 6.60 7.35 |
- 4.70 5.95 - 7.45 |
- - - - - |
60.32 60.32 60.32 60.32 60.32 |
5.95 6.85 8.63 9.82 10.94 |
- 6.99 8.85 - 11.09 |
- - - - - |
4.24 4.83 6.45 7.49 8.53 |
Pu PNU - - - |
PN PNU - - - |
PN PNU PNU P Pu |
PN PNU PNU - - |
PN PNU PNU P Pu |
PN PNU PNU P Pu |
- PNU PNU - - |
2-7/8 2-7/8 2-7/8 2-7/8 2-7/8 2-7/8 |
6.40 7.80 8.60 9.35 10.50 11.50 |
6.50 7.90 8.70 9.45 - - |
- - - - - - |
73.02 73.02 73.02 73.02 73.02 73.02 |
9.52 11.61 12.80 13.91 15.63 17.11 |
9.67 11.76 12.95 14.06 - - |
- - - - - - |
5.51 7.01 7.82 8.64 9.96 11.18 |
PNU - - - - - |
PNU - - - - - |
PNU PNU PNU Pu P P P |
PNU PNU PNU - - - |
PNU PNU PNU Pu P P P |
PNU PNU PNU Pu P P P |
PNU PNU PNU - - - |
3-1/2 3-1/2 3-1/2 3-1/2 3-1/2 3-1/2 3-1/2 |
7.70 9.20 10.20 12.70 14.30 15.50 17.00 |
- 9.30 - 12.95 - - - |
- - - - - - - |
88.90 88.90 88.90 88.90 88.90 88.90 88.90 |
11.46 13.69 15.18 18.90 21.28 23.07 25.30 |
- 13.84 - 19.27 - - - |
- - - - - - - |
5.49 6.45 7.34 9.52 10.92 12.09 13.46 |
PU PNU PN - - - - |
PN PNU PN - - - - |
PN PNU PN PNU P P P |
PN PNU PN PNU - - - |
PN PNU PN PNU P P P |
PN PNU PN PNU P P P |
- PNU - PNU - - - |
4 4 4 4 4 4 |
9.50 10.70 13.20 16.10 18.90 22.20 |
- 11.00 - - - - |
- - - - - - |
101.60 101.60 101.60 101.60 101.60 101.60 |
14.14 - 19.64 23.96 28.13 33.04 |
- 16.37 - - - - |
- - - - - - |
5.74 6.65 8.38 10.54 12.70 15.49 |
PN Pu - - - - |
PN Pu - - - - |
PN Pu P P P P |
PN Pu - - - - |
PN Pu P P P P P |
PN Pu P P P P P |
- - - - - - |
4-1/2 4-1/2 4-1/2 4-1/2 4-1/2 4-1/2 4-1/2 |
12.60 15.20 17.00 18.90 21.50 23.70 26.10 |
12.75 - - - - - - |
- - - - - - - |
114.30 114.30 114.30 114.30 114.30 114.30 114.30 |
18.75 22.62 25.30 28.13 32.00 35.27 38.84 |
18.97 - - - - - - |
- - - - - - - |
6.88 8.56 9.65 10.92 12.70 14.22 16.00 |
PNU - - - - - - |
PNU - - - - - - |
PNU P P P P P P |
PNU - - - - - - |
PNU P P P P P P |
PNU P P P P P P |
- - - - - - - |
P--duidelijk eind; N--maak niet met ingepast dik en koppeling; U--ingepast en koppeling met externe verstoorde einden; I--gehele verbindingen. | |||||||||||||||
A: wordt getoond met eenheidslengte van ingepast en koppelings nominaal gewicht (di2~4-bar) alleen voor informatieve doeleinden. B: Dichtheid Martensitic van het chromiumstaal (L80 en 9Cr) is verschillend van koolstofstaal. Daarom is het gewicht in de lijst wordt gegeven geen nauwkeurige waarde voor Martensitic chromiumstaal dat. De factor van de gewichtscorrectie van 0.989.C: geen dikkere buizenstelselkoppeling leverde met het standaard of speciale afkanten en het koppelen. Buizenstelsel met externe verstoorde die einden van een standaardkoppeling, een speciale kraag afgekante kraag of een speciale ontruiming worden voorzien. |
Buiten Diameter, van het Muurdikte en Gewicht Tolerantie
Punt | Tolerantie | |
Buitendiameter | D, 114.3mm, ±0.79mm D>=114.3mm, ±1.0-0.5%D |
|
Muurdikte | -12.5%± | |
Gewicht | Enige Lengte | +6.5%, - 3,5% |
Wagenladingen | -1.75% |
Chemische Samenstelling
Rang | Chemisch product Composition% | ||||||||||||
c | Mn | Mo | Cr | Ni | Cu | P | S | Si | |||||
min | maximum | min | maximum | min | maximum | min | maximum | maximum | maximum | maximum | maximum | maximum | |
J55 | - | - | - | - | - | - | - | - | - | - | 0,030 | 0,030 | - |
K55 | - | - | - | - | - | - | - | - | - | - | 0,030 | 0,030 | - |
N80 | - | - | - | - | - | - | - | - | - | - | 0,030 | 0,030 | - |
L80-1 | - | 0,43 | - | 1.90 | - | - | - | - | 0,25 | 0,35 | 0,030 | 0,030 | 0,45 |
L80-13Cr | 0,15 | 0,22 | 0,25 | 1.00 | - | - | 12.0 | 14.0 | 0,50 | 0,25 | 0,020 | 0,010 | 1.00 |
C90-1 | - | 0,35 | - | 1.20 | 0,25 | 0,85 | - | 1.50 | 0,99 | - | 0,020 | 0,010 | - |
C95 | - | 0,45 | - | 1.90 | - | - | - | - | - | - | 0,030 | 0,030 | 0,045 |
P110 | - | - | - | - | - | - | - | - | - | - | 0,030 | 0,030 | - |
Lengten
R1 | R2 | R3 | |
Buizenstelsel | 6.10-7.32 | 8.539.75m | 11.5812.80m |
Omhulsel | 4.887.62m | 7.6210.36m | 10.3614.63m |
Puipverbinding | 0.50.6m (2FEET-20FEET) |
